Orbital cutting machines have become essential equipment in industries that require high-precision pipe and tube processing. They are widely used in pharmaceutical manufacturing, food and beverage processing, semiconductor fabrication, biotechnology, aerospace, and high-purity piping systems. These machines are designed to deliver clean, accurate, and burr-free cuts while maintaining the integrity of the pipe material.
However, achieving the best results from an orbital cutting machine requires more than simply turning it on and starting a cut. Proper operation is critical for ensuring operator safety, maximizing cutting efficiency, extending machine lifespan, and maintaining consistent product quality.
Incorrect operation can lead to poor cut quality, equipment damage, increased production costs, and even workplace accidents. Therefore, understanding how to operate orbital cutting machines safely and efficiently is essential for every operator, technician, and production manager.
This guide provides a comprehensive overview of best practices, safety procedures, operational techniques, and maintenance recommendations to help users get the most from their orbital cutting machines.
Before discussing operation procedures, it is important to understand how orbital cutting machines work.

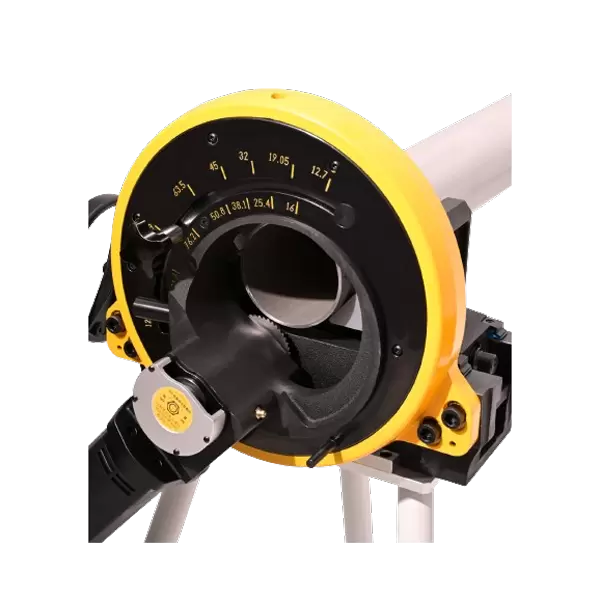

Unlike traditional pipe cutting equipment, orbital cutting machines use a rotating cutting head that travels around a stationary pipe. The machine securely clamps the pipe while the cutting tool performs a precise circular cutting motion.
This design offers several advantages:
High cutting precision
Burr-free pipe ends
Minimal pipe deformation
Consistent cut quality
Reduced operator dependence
Improved weld preparation
Orbital cutting machines are commonly used for:
Stainless steel tubing
Thin-wall pipes
High-purity process piping
Specialized alloy tubing
Because these applications often require strict quality standards, proper machine operation is essential.
Safety should always be the first priority when operating industrial cutting equipment.
Although orbital cutting machines are generally safer than many conventional cutting methods, they still involve:
Rotating components
Sharp cutting blades
Electrical systems
Moving mechanical parts
Metal chips and debris
Failure to follow safety procedures can result in:
Hand injuries
Eye injuries
Equipment damage
Product defects
Production downtime
A well-trained operator not only protects themselves but also contributes to higher productivity and better cutting performance.
Before starting any cutting job, perform a complete machine inspection.
Inspect the machine for:
Loose components
Damaged cables
Worn clamping systems
Broken safety guards
Abnormal vibration signs
Never operate equipment that shows visible damage.
The cutting blade plays a critical role in cut quality.
Check for:
Cracks
Chipped teeth
Excessive wear
Corrosion
A damaged blade can produce poor cuts and increase safety risks.
Replace worn blades immediately.
Inspect all electrical components.
Ensure:
Power cables are intact
Connectors are secure
Emergency stop systems function correctly
Grounding connections are properly installed
Electrical issues should always be addressed before operation.
Operators should wear:
Safety glasses
Cut-resistant gloves
Hearing protection when necessary
Safety shoes
Appropriate work clothing
Avoid loose clothing, jewelry, or long hair that could become entangled in moving parts.
Proper pipe preparation significantly affects cutting quality.
Remove:
Dirt
Oil
Grease
Rust
Surface contaminants
Clean pipes ensure better clamping performance and more accurate cuts.
Confirm:
Pipe diameter
Wall thickness
Material type
Different materials and dimensions may require different cutting parameters.
Using incorrect settings can lead to:
Excessive blade wear
Poor cut quality
Reduced efficiency
Although many orbital cutting machines offer positioning aids, clearly marking the desired cutting location improves setup accuracy and reduces errors.
Correct setup is one of the most important factors in achieving efficient and safe operation.
Ensure the machine is suitable for:
Pipe diameter range
Material type
Wall thickness
Operating outside the machine's specifications can compromise performance and safety.
Many orbital cutting machines use interchangeable clamping inserts.
Choose inserts that:
Match the pipe size
Provide even pressure distribution
Prevent pipe deformation
Proper clamping ensures stable cutting conditions.
Position the pipe within the clamping system and tighten according to manufacturer recommendations.
Avoid:
Over-tightening
Under-tightening
Misalignment
Improper clamping may cause:
Pipe movement
Inaccurate cuts
Increased blade wear
Ensure the cutting head is correctly positioned relative to the pipe.
Proper alignment helps achieve:
Square cuts
Consistent wall thickness
Better weld preparation
Once setup is complete, follow proper cutting procedures.
Allow the machine to reach operating speed before engaging the cutting blade.
Avoid sudden starts that may place excessive stress on mechanical components.
Observe the cutting process continuously.
Watch for:
Unusual noises
Excessive vibration
Irregular blade movement
Smoke or overheating
Stop the machine immediately if abnormalities occur.
One common operator mistake is applying excessive cutting pressure.
Too much pressure can cause:
Blade damage
Pipe deformation
Rough cut surfaces
Increased burr formation
Instead, allow the machine and blade to perform the work at a controlled feed rate.
Never touch:
Rotating blades
Moving cutting heads
Clamping mechanisms during operation
Wait until all movement has completely stopped before making adjustments.
Efficiency is not only about speed. It also includes quality, consistency, and equipment utilization.
Optimal cutting performance depends on:
Material type
Pipe size
Wall thickness
Blade specifications
Using proper parameters improves:
Cutting speed
Surface finish
Tool life
Sharp blades produce:
Cleaner cuts
Lower cutting resistance
Faster processing
Dull blades increase:
Energy consumption
Burr formation
Machine wear
Regular blade inspection is essential for efficient operation.
Standardized procedures can significantly reduce production downtime.
Best practices include:
Organizing tools
Preparing materials in advance
Using setup checklists
Training operators consistently
Efficient setup improves overall productivity.
Arrange pipes for easy loading and unloading.
This reduces:
Operator fatigue
Processing delays
Handling damage
Well-organized workstations contribute to smoother production flow.
Even experienced operators occasionally make mistakes that affect performance.
A worn blade can cause:
Rough edges
Increased burrs
Reduced accuracy
Always replace blades according to maintenance schedules.
Improper clamping may result in:
Pipe slippage
Deformation
Poor cut quality
Always verify clamping security before starting the machine.
Applying unnecessary force does not improve productivity.
Instead, it often causes:
Blade wear
Machine stress
Reduced cut quality
Poor maintenance leads to:
Unexpected downtime
Increased repair costs
Lower cutting precision
Preventive maintenance is far more cost-effective than emergency repairs.
Regular maintenance is essential for maintaining machine performance.
At the end of each shift:
Remove chips and debris
Clean clamping surfaces
Inspect blades
Check safety systems
Daily cleaning prevents contamination and wear.
Inspect:
Moving components
Fasteners
Guide systems
Electrical connections
Lubricate components according to manufacturer guidelines.
Perform a more comprehensive inspection of:
Motor performance
Clamping accuracy
Blade alignment
Mechanical wear
Address minor issues before they become major problems.
The effectiveness of an orbital cutting machine depends heavily on operator skill.
Comprehensive training should cover:
Machine operation
Safety procedures
Troubleshooting
Maintenance basics
Emergency response protocols
Well-trained operators deliver:
Higher productivity
Better cut quality
Lower operating costs
Improved workplace safety
Continuous training programs help maintain operational excellence.
Organizations that follow proper operating procedures experience significant advantages.
These benefits include:
Consistent operation produces:
Square cuts
Burr-free edges
Better welding preparation
Efficient operation reduces:
Scrap rates
Rework
Tool replacement costs
Proper maintenance and operation extend equipment service life.
Following safety procedures reduces accidents and injuries.
Optimized processes allow manufacturers to achieve more output with fewer resources.
Modern orbital cutting systems are becoming increasingly intelligent.
Emerging technologies include:
Digital process monitoring
Automatic feed control
Predictive maintenance systems
Smart diagnostics
Industry 4.0 integration
These innovations will further improve safety, efficiency, and process consistency.
Operating orbital cutting machines safely and efficiently requires a combination of proper training, careful setup, routine maintenance, and disciplined operating procedures. While these machines are designed to deliver highly accurate and burr-free cuts, their performance depends greatly on how they are used.
By following best practices such as inspecting equipment before use, selecting the correct cutting parameters, maintaining sharp blades, ensuring proper clamping, and adhering to safety guidelines, operators can maximize productivity while minimizing risks.
As precision manufacturing continues to grow across industries such as pharmaceuticals, semiconductors, food processing, and aerospace, orbital cutting machines will remain a critical tool for producing high-quality pipe and tube assemblies. Safe and efficient operation not only protects workers and equipment but also ensures consistent results that meet the highest industry standards.
