With the development of industrial automation and precision construction technology, orbital pipe cutting machines have been widely used in pipe cutting operations in industries such as petroleum, natural gas, chemical, electric power, shipbuilding, and construction. Compared with traditional manual cutting methods, orbital pipe cutting machines are efficient, precise, and highly controllable. However, due to the complex structure of the equipment and the operation involving high-temperature and high-speed rotating parts, if safety details are ignored during actual use, it is very easy to cause mechanical damage or personal injury. This article will comprehensively explain the safety operation precautions of orbital pipe cutting machines from multiple aspects such as equipment overview, pre-operation preparation, key points of safe operation, fault prevention, and maintenance recommendations, to help users to carry out operations more scientifically, standardizedly, and safely.

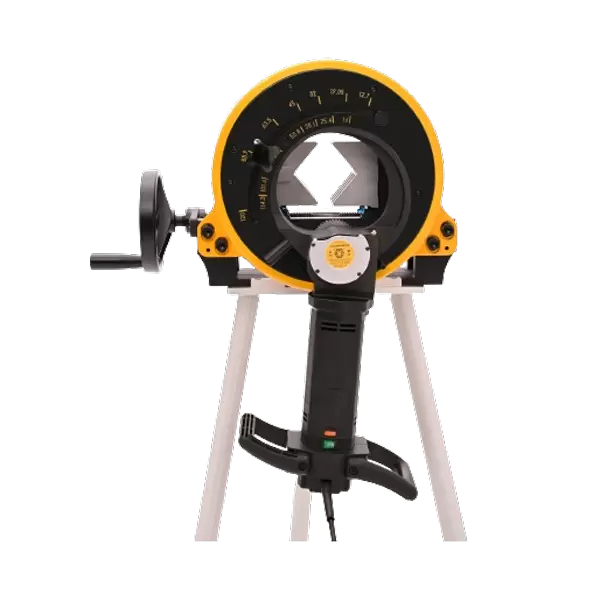

The orbital pipe cutting machine is an automated equipment that relies on mechanical rails to clamp on the outer wall of the pipe and cuts by rotating the cutting head along the rail. Its main components include:
Guide rail system: used to fix on the outer wall of the pipe to ensure the stability and accuracy of the cutting path.
Cutting drive system: controls the movement of the cutting head along the guide rail to complete 360° rotation cutting.
Cutting head (flame/plasma/grinding wheel, etc.): Select the corresponding cutting method according to the material and process.
Control system: including speed regulation, start/stop control, power management, etc.
Since this equipment is mostly used for opening and weld trimming of medium and large pipes, the cutting process involves high-temperature flames, strong rotation and electrical devices, so its operators must strictly abide by safety regulations.
Before operating the orbital pipe cutting machine, the following preparations are essential:
2.1 Personnel qualification requirements
The operator must undergo special training, be familiar with the equipment structure and operation process, and have basic mechanical knowledge and safety awareness. Unauthorized personnel are not allowed to activate the equipment privately.
2.2 Wear personal protective equipment (PPE)
Depending on the cutting method, operators should wear the following protective equipment:
Fireproof work clothes
Protective glasses/goggles (to avoid sparks or light arcs that may damage the eyes)
Cut-resistant gloves
Insulated and fire-resistant shoes
Mask or respiratory protection (especially in flame or plasma cutting)
2.3 Check the status of the equipment
Make sure all parts of the cutting machine are intact, especially:
Whether the guide rail is firmly fixed to the pipe
Whether the cable and power connector are loose or damaged
Whether the cutting head is worn or loose
Whether the parameters of the control system are set correctly
2.4 Confirmation of the working environment
There should be no flammable and explosive substances at the working site, and good ventilation should be maintained.
The ground should be dry and free of water to avoid electric shock during operation.
There should be enough space around the equipment to avoid crowding or equipment collision.
During the cutting process, the operator should strictly follow the following safety operation specifications:
3.1 Final confirmation before starting
Make sure that the cutting path has been cleared of obstacles and the pipe surface is clean and oil-free;
Check whether the guide rail installation is aligned with the center of the pipe to avoid cutting deviation;
3.2 Precautions during cutting
The flame/plasma nozzle position should be monitored throughout the cutting process to prevent jamming or offset;
It is forbidden to adjust the track or move the equipment without authorization during cutting;
The operator should stand in the direction of non-spark splashing to avoid burns;
3.3 Shutdown and power off the equipment
After cutting, the cutting system should be turned off first, and then the main power supply;
Wait for the equipment to cool completely before cleaning or maintenance;
It is strictly forbidden to clean or repair the equipment when it is not powered off.
When using orbital pipe cutting machines, be alert to the following common safety hazards and take effective preventive measures:
4.1 Electrical short circuit and electric shock
Hazard sources: cable wear, ground wire detachment, humid environment
Preventive measures:
Use qualified three-phase power supply and strictly ground;
All cables need to be checked and replaced regularly;
The working area should be kept dry and equipped with insulating mats.
4.2 Fire and explosion risks
Hazard sources: Cutting sparks ignite surrounding combustibles or residual gases in the pipe.
Preventive measures:
Purge the pipeline with nitrogen/inert gas before cutting to remove combustible gases;
It is strictly forbidden to stack flammable materials such as oil and wood nearby;
Emergency equipment such as fire extinguishers and fire blankets are available.
4.3 Mechanical injuries
Hazard sources: The cutting head rotates at high speed and the track is not firmly fixed.
Preventive measures
Install and fix the guide rail strictly in accordance with the operation manual;
Operators must not approach the cutting moving parts;
Keep focused during operation and avoid distractions.
Good maintenance is the basis for ensuring the long-term safe operation of equipment. It is recommended that the operating unit establish a regular inspection system:
Daily inspection:
Check whether the cutting head, guide rail, and drive components are loose;
Clean up metal residues and dust generated by cutting;
Ensure that the cable connector is not loose or aging.
Weekly maintenance:
Check whether the control system is working properly;
Check whether the lubricating parts need to be refilled;
Calibrate and test the track system.
Monthly maintenance:
Comprehensively check the fasteners and transmission devices of the equipment;
Update severely worn parts;
Test the effectiveness of the emergency stop system and power-off protection device.
Although the orbital pipe cutting machine is an efficient industrial cutting tool, safety should always be put first. Any negligence in operation may cause irreversible consequences. Enterprises should implement safety management responsibilities from multiple aspects such as systems, training, and equipment maintenance, and operators should also uphold the professional quality of "safety first" and conscientiously implement each operating specification. Only in this way can we truly achieve efficient, safe and sustainable production goals.
