In modern industrial production, welding stainless steel pipes is a common and critical process. This is particularly true in industries such as chemical, food, pharmaceutical, shipbuilding, and petrochemicals, where high-quality welding is directly related to the safety and service life of piping systems. As highly efficient welding equipment, stainless steel pipe automatic orbital welding machines are gradually replacing traditional manual and semi-automatic welding methods due to their stability, precision, and repeatability. However, leveraging automatic orbital welding machine operating techniques to improve welding efficiency while ensuring weld quality is a key concern for every welding engineer and operator. This article will share practical methods for improving efficiency from multiple perspectives, including equipment operation, welding process optimization, and maintenance.

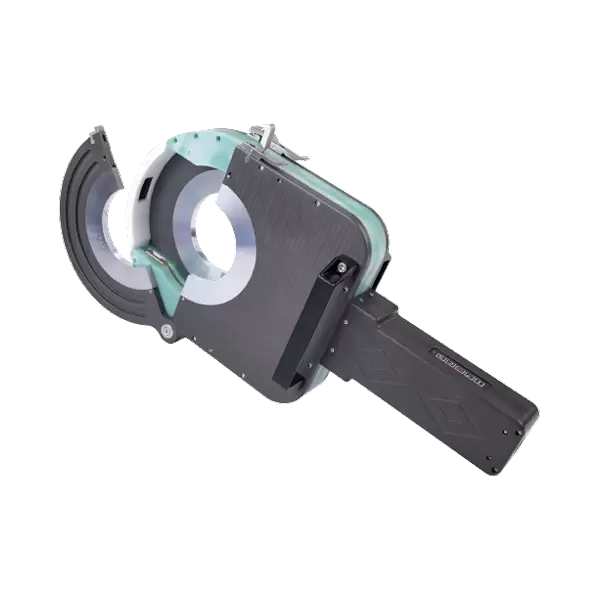

Automatic orbital welding machines are designed to weld along a guide rail and are suitable for welding stainless steel pipes, both straight and curved. A motor drives the welding torch to move evenly along the rails, achieving fully automated welding. Compared to manual welding, automatic orbital welding machines offer the following advantages:
High weld consistency: The orbital motion ensures a stable welding torch speed and a uniform weld appearance.
High welding efficiency: Automated operation reduces manual fatigue and errors, making it suitable for high-volume production. High Repeatability: Welding parameters for the same workpiece can be saved, ensuring consistent weld quality for each weld.
Adaptable to Complex Pipe Fittings: Adjustable rail length and angle can meet the welding requirements of various pipe fittings.
Understanding the equipment's features is a prerequisite for effectively using the stainless steel pipe automatic orbital welding machine. Familiarity with the equipment's structure, control system, and welding parameters helps operators quickly make adjustments and improve productivity.
Efficient welding begins with pre-welding preparation. The following are essential preparatory steps to improve welding efficiency:
Inspect the Equipment and Rails
Confirm that the rails are flat and free of visible wear or bends.
Check the welding machine's power supply, cables, and control panel for proper function.
Check the welding gun, electrode, and gas lines to ensure proper shielding gas flow.
Workpiece Preparation
Chamfer the pipe end faces to ensure uniform weld gaps.
Clean the welding area to remove oil, scale, and moisture to prevent weld defects.
Use support brackets to secure long pipe sections to prevent deformation during welding.
Parameter Settings
Select the appropriate current, voltage, and welding speed based on the pipe diameter, wall thickness, and welding position. Set the track speed to ensure a uniform weld pool.
For stainless steel pipe welding, adjust the argon flow rate to avoid porosity and oxidation.
Good preparation not only improves welding efficiency but also significantly reduces rework, forming the foundation of automatic track welding machine operation skills.
After mastering basic operations, the following techniques can help operators further improve efficiency:
3.1 Optimizing Welding Parameters
The key to optimizing stainless steel pipe welding processes lies in proper parameter adjustment:
Welding Speed: Too fast a speed can result in incomplete weld penetration, while too slow a speed can reduce efficiency and create weld numbness. Find the optimal speed through trial welds.
Welding Current: Pipe wall thickness influences current selection. For thicker pipes, slightly higher current can be used, while for thinner pipes, lower current should be used to prevent burn-through.
Welding Voltage: Too high a voltage can cause spatter, while too low a voltage can result in uneven welds. Adjust the voltage to ensure a smooth weld surface and sufficient weld penetration.
3.2 Proper Track Layout Planning
Track length and installation position directly impact welding efficiency:
For straight pipes, use longer tracks to reduce the number of repositionings. For bent pipes or complex pipe fittings, a combination track can be used to ensure the welding gun maintains the optimal angle.
3.3 Multi-station Parallel Operation
If space permits, multiple automatic orbital welding machines can be configured to operate simultaneously. Combined with pre-workpiece preparation and subsequent processing, this can significantly improve the welding performance.
3.4 Regular Equipment Calibration and Maintenance
After extended use, the welding gun may shift position and the guide rails may wear. Regular maintenance of automatic orbital welding machines is recommended:
Check the distance between the welding gun and the workpiece to ensure a uniform weld pool.
Calibrate the track straightness to avoid weld deviation.
Replace consumable welding gun parts, such as electrodes and nozzles, to ensure welding stability.
Maintenance not only extends equipment life but also ensures efficient production.
The characteristics of stainless steel material dictate special precautions during welding:
Controlling heat input: Stainless steel conducts heat slowly and is prone to deformation due to heat accumulation. Using intermittent welding or reducing the welding current can effectively minimize deformation.
Shielding Gas: Argon shielding prevents weld oxidation and blackening. Thin-walled pipes provide added tail flame protection to prevent uneven cooling and the formation of oxidation discoloration. Weld Cleaning: Promptly remove slag and spatter after welding to ensure a smooth weld and facilitate subsequent inspection.
Weld Quality Monitoring: Radiographic or ultrasonic testing can be used on critical pipelines to ensure weld quality.
In addition to individual equipment operating techniques, overall efficiency can be improved through management and process optimization:
Developing Welding Procedures: Standardize parameter settings, track installation, and workpiece handling procedures to reduce trial-and-error time.
Operator Training: Skilled operators can quickly adjust equipment, minimizing downtime.
Optimizing Workpiece Flow: Rationally arrange upstream and downstream processes to ensure continuous operation of the welding machine.
Data Recording and Analysis: Record welding parameters and efficiency, continuously optimize welding plans, and achieve lean production.
Operating techniques and process optimization for stainless steel pipe automatic orbital welding machines are key to improving welding efficiency. Through scientific preparation, appropriate parameter settings, track optimization, regular maintenance, and combined with the characteristics of stainless steel welding and process management, companies can not only significantly improve production efficiency but also ensure weld quality and safety. With the advancement of automation technology, orbital welding machines will become increasingly intelligent, achieving fully automated control of the welding process. Mastering the above techniques will enable companies to achieve efficient, low-cost, and high-quality welding production.
